Syngas Cleaning And Operation Time For Private/Independent Power Providers (IPP)

The continuity and stability of the electricity supply to the buyer is the most important thing for the private power provider or the Independent Power Producer (IPP). Electrical buyers in general are government through PLN or industry. To be able to provide such a continuous and stable electricity supply, IPP strives in such a way in a variety of ways including its various process engineering and also the operational. Biomass is a renewable energy source for electricity production that has many advantages especially in Indonesia, for example when wind and water (hydro) power plants are severely affected by weather conditions, the biomass power plant is not affected. Even high rainfall and tropical climate will increase the production of biomass as a source of energy. Related to the use of gas from biomass there are two routes to produce gas that is biology route and thermochemical route. The biological route is by fermentation in the digester, while the thermal route with gasification and pyrolysis. The characteristics of the raw material will determine the choice of technology, whether by biological route or thermochemical. Liquid waste or high water content and easy rot, such as livestock manure and palm oil mill effluent (POME) will use biological route, whereas biomass which is not easy to decompose such as woody biomass thermochemical route becomes the choice.

Why need to extract gas from the biomass? This is in addition to improving efficiency, also facilitate the utilization. Even by extracting the gas will also produce a number of economic value-added byproducts, for example with pyrolysis technology in addition to generating electricity, by-products such as charcoal, biooil, and biomass vinegar (liquid smoke). The economic value of these byproducts are bigger than the electricity production. The gas composition of the various biomasses also varies, depending on the biomass and the technology used, for example in biogas of large methane gas composition (55-75%), gasification of methane gas composition 0.5-3% while in pyrolysis gas composition methane 4-11%. Gas engine is a equipment or device commonly used to convert the combustible gas into electricity. Gas turbine although efficiency is higher but rarely used because of operational and maintenance factors are more difficult. Steam turbine is also rarely used and commonly used in large capacity power plants (> 20 MW). While Stirling engine and ORC (Organic Rankine Cycle) technology can also use gas from the biomass, but it is not specific because both Stirling engine and ORC only require heat for its operation and it does not have to be from gas. Practically both technologies above are using a lot of combustion to obtain the required heat.

Stirling Engine

ORC Technology

Gas Turbine

Gas Engine

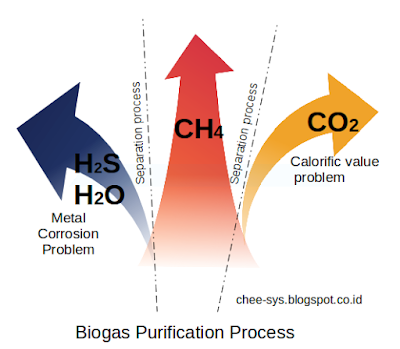

The problem of purity or cleanliness of the gas that resulted in the operation of private power plants (IPP) received serious attention. The cleaner the gas and the stable the gas supply so the more stable the operation of the power plant and the opposite. The purchaser or user of electricity also requires the amount of electricity supply and tolerance to the breaking or shutting down of electricity at a certain time which must be fulfilled by the provider or private power producer. Various gas cleaning technologies have been used to obtain clean and stable gas supply to the converting equipments used. Gas cleaning technology in addition must be cheap and also easy to use so that electricity providers remain profitable. In general, the gas cleaning technology is to clean the gas from its impurities including also reduce or eliminate the gases that potentially disrupt the operation of such conversion equipments. For example CO2 and H2S gases in biogas process or tar in gasification and pyrolysis.

Water scrubber (absorber) and stripper unit for biogas refinery

JF BioCarbon continuous pyrolysis technology is the best choice of electricity production from biomass with thermal route. This is in addition to generated electricity, also produced side products that are not less profitable, namely charcoal, biooil, and biomass vinegar. Then how about cleaning the gas so that the power supply electricity continuously? With a number of line cleaning units that work alternately, the continuity of the supply of clean gas can continue to run so also with the supply of electricity. A number of sensors are installed to ensure the cleanliness of the gas. Downtime or power outages will be reduced or even eliminated. Sufficient gas cleaning will ensure the continuous operation of the gas engine generator as a conversion unit from pyrolysis gas (chemical energy) to heat and mechanical energy (reciprocating engine in gas engine) and generate electricity. It is time for private power companies (IPP) to consider slowpyrolysis technology to continue as a wise and best choice for the production of electricity from biomass and a number of byproducts that are very profitable.
